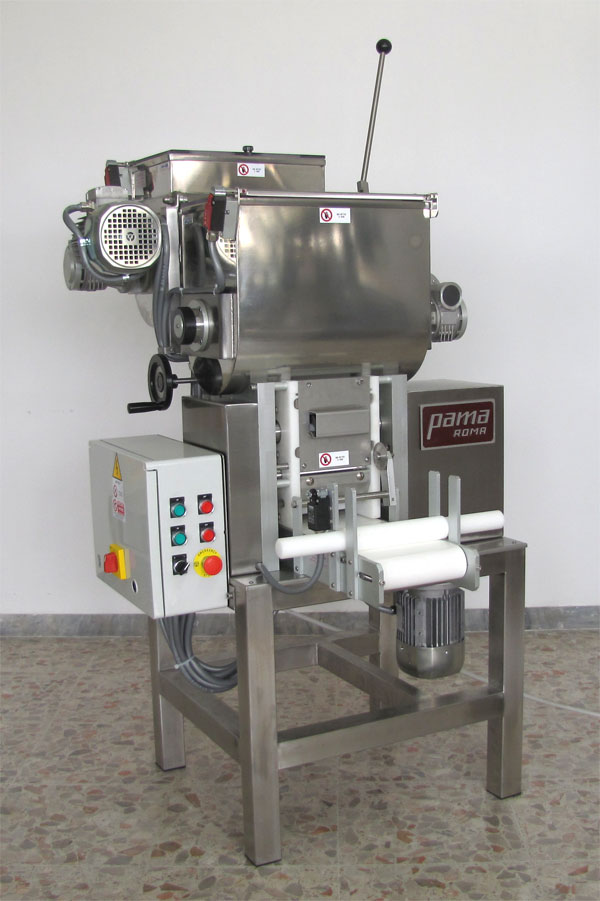

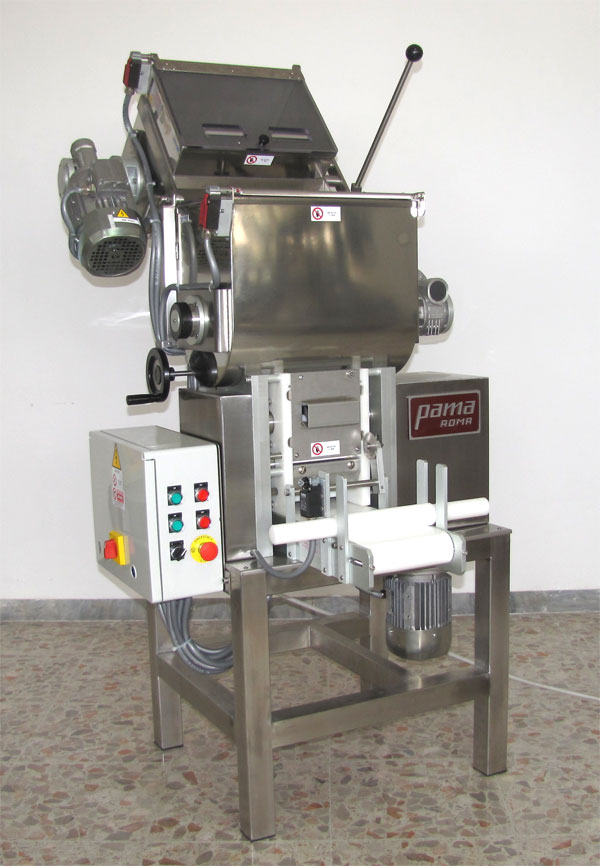

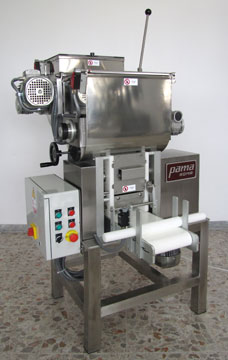

Automatic Sheeter mod. C/170-IM
|

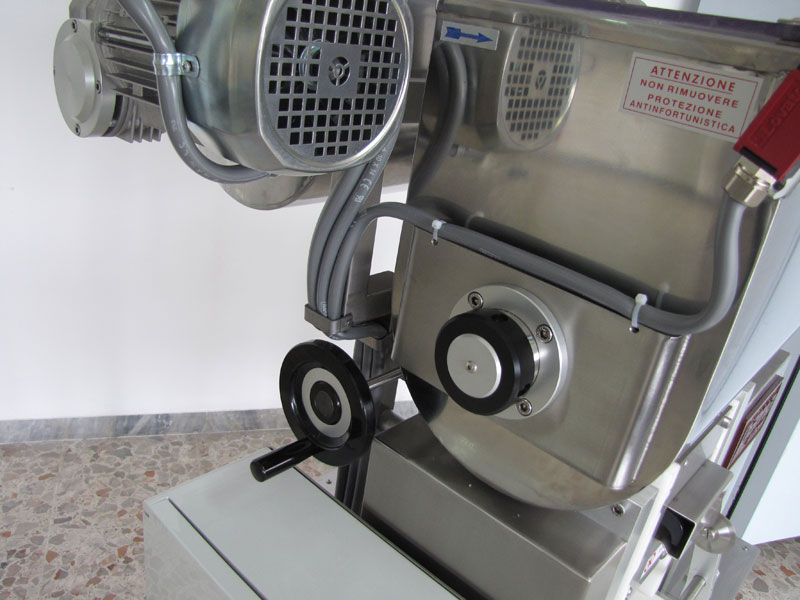

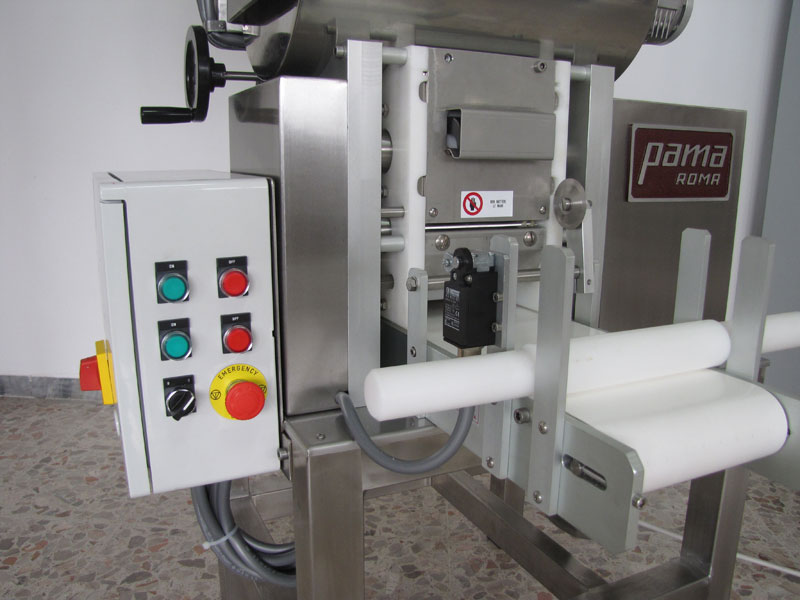

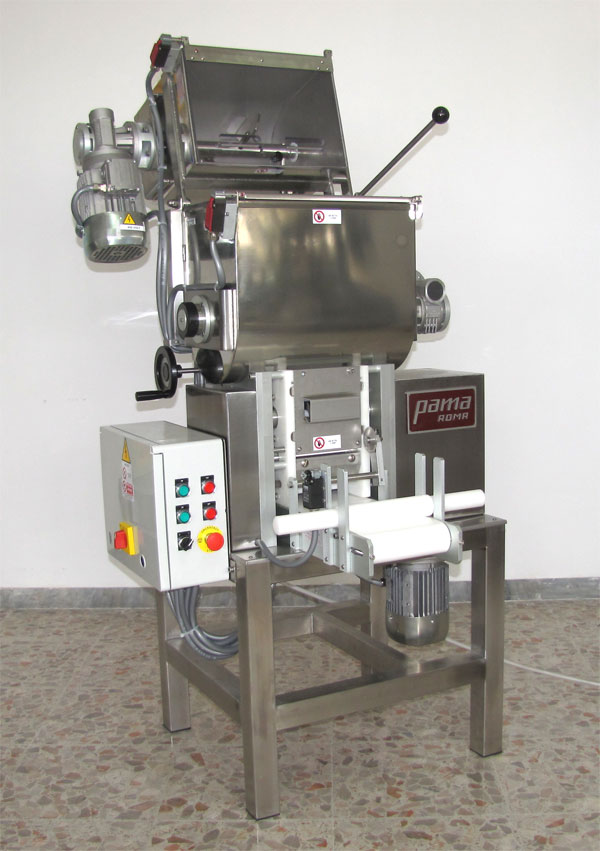

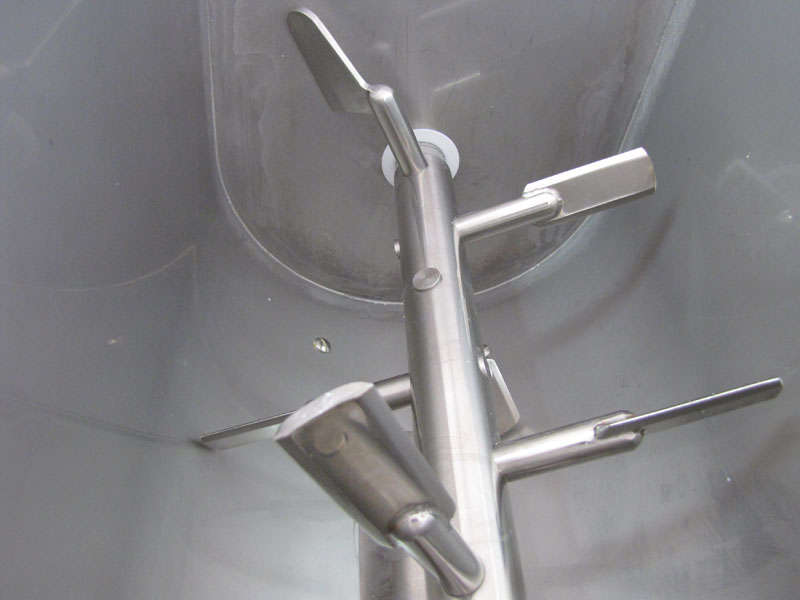

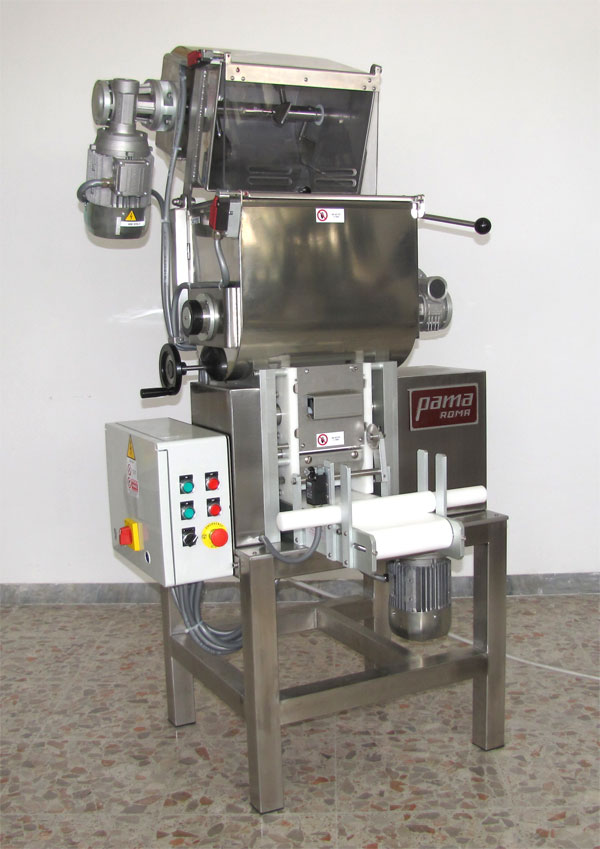

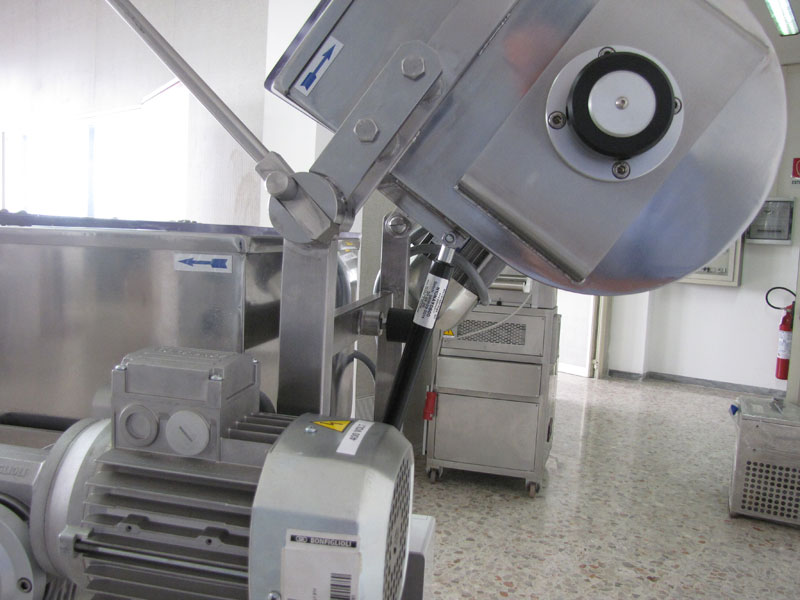

 Automatic sheeter double-bin hopper to produce sheet of pasta 170 mm x 5 thick. Particularly suitable in Small Pasta Shop, Breakfast, Dining & Restaurants, the machine replaces manual systems to produce high-quality pasta, noodles or useful to produce food machinery Ravioli, Ravioli and Cappelletti. THE MACHINE IS' EASY TO USE, EASY TO CLEAN AND MINTENANCE FREE. Both mixers have the tree removed dough made of round full palette of stainless steel with interlocking conical gear and spaced supports mounted on the sides open for easy cleaning, and safety cover with slots for inserting liquid. The overthrow of the tank mixture is facilitated by a gas spring and lever with automatic. Both basins, being independent, are useful for making small mixes. Group of rolling PATENTED with stainless steel cylinders mounted on bearings. Direct drive (no chains) by high-performance motor. Tape output with slitting the sheet to obtain the desired width complete with microswitch limit. Marking CE
|
MODEL |
C/170 - IM |
Dimensions b x p x h mm |
900 x 1100 x 1500 |
Weight kg. |
200 |
Output kg/h. |
60 - 80 |
Capacity kneaders kg.
|
20 totali ca. (flour/bran and liquid) |
Sheet width mm |
170 (inches 11,02) |
Sheet thickh mm |
5 |
Power kW. |
2,3 |
Motors Volt. |
230/400 3F |
|
Automatic Sheeter mod. CA/280-400
|
Automatic sheeter double-bin hopper to produce sheet of pasta mm 5 thikness, with electromechanical overturning in 13 sec. Patented rolling group, with sheeter rollers in stainless steel AISI 304, with roller bearings which don’t need maintenance. Speed of pasta output can be regulated by means of INVERTER. Belt, side panels and frontal panels are mobiles for easy cleaning. Round edges for double bin-hopper, in stainless steel AISI 304.
Product outlet over belt with longitudinal cutter device. Machine in stainless steel AISI 304 version. Marking CE
> CA280 Douple hopper version
> CA500 Single hopper version
|
MODEL |
CA 280 – N - IM |
CA 400 – N - IM |
Dimensions b x p x h mm |
1250 x 1400 x 1700 |
1700 x 1400 x 1700 |
Weight kg. |
700 |
850 |
Output kg/h. |
80 – 210 |
120 - 300 |
Capacity kneaders kg.
|
38 totali ca.
(flour/bran and liquid) |
45 totali
(flour/bran and liquid) |
Sheet outlet kg./h |
120 |
140 |
Sheet width mm |
280 (inches 11,02) |
400 (inches 15,7) |
Power kW. |
5 |
6 |
Motors Volt. |
220/380 - 3F |
220/380 - 3F |
MODEL |
CA 280 – N |
CA 400 – N |
Dimensions b x p x h mm |
1100 x 1200 x 1600 |
1500 x 1200 x 1600 |
Weight kg. |
550 |
700 |
Output kg/h. |
80 – 210 |
120 - 300 |
Capacity kneaders kg.
|
38 totali ca.
(flour/bran and liquid) |
45 totali
(flour/bran and liquid) |
Sheet outlet kg./h |
70 |
90 |
Sheet width mm |
280 (inches 11,02) |
400 (inches 15,7) |
Power kW. |
3,5 |
4,5 |
Motors Volt. |
220/380 - 3F |
220/380 - 3F |
|
Automatic Sheeter mod. TL/170
|
Automatic sheeter-cutter machine - simple and silent - with table - sheeter of mm 170 to reduce the thickness and to cut sheet in different tagliatelle sizes - equipped with an interchangeable three cutters device - with this machine thickness, width and long cuts are adjustable - equipped with anti-accident devices
Marking CE
Motors: Volt 220/380 three phases
Power: kW 0,8
Output KGs/h: KGs 80 about (pounds 177)
Dimensions: mm 460 x 620 x 1430 H
Weight: KGs 130 about
Rollers width: mm 170 (inches 6,69)
|
Automatic Sheeter mod. SI/280-400
|
 Stacking and cutting machine, ideal to replace the hand process for sheet of pasta – standard width is mm 280-400 - it is designed to roll, to make a dusting, to cut and to overcome the pasta sheet layers automatically at all – moreover this machine is suitable to deliver tagliatelle or lasagne of different sizes and lengths by only fitting a cutting equipment – this machine not require more use of manpower allowing the unit operator to perform other tasks when the unit is running – it deposits both lasagne and long cuts directly into a designated storage or retail container – equipped with an automatic counter, the machine can be adjusted to stop at a pre-designated number of sheets – it is capable of cutting lasagne 3,9” x 5,5” – at the pasta sheet stack completion the machine stops automatically –mod. AT/280 do not require any maintenance procedure - machine in stainless steel version. Marking CE
MODEL |
SI/280 |
SI/400 |
Dimensions
|
810 x 1300 x 1330 |
930 x 1300 x 1330 |
Weight kg |
270 c. |
290 c. |
prod/h kg |
80 c. |
100 c. |
Sheet width mm |
280 |
400 |
Power KW |
2,1 |
2,1 |
Motors volt |
220/380-3F+N |
220/380-3F+N |
|
Automatic Sheeter mod. CL/280-400
|
Rolling machines with roller width of mm 280 (inches 11)
-mm 400 (inches 15,74) ideal to regulate sheet of pasta to desired thickness, also recycling left-overs of fresh pasta, from cappelletti, tortellini or ravioli machines -this machine is equipped with anti-accident devices - in stainless steel version
Marking CE
MODEL |
CL/280 |
CL/400 |
Dimensions
|
680 x 400 x 1200 |
800 x 400 x 1200 |
Weight kg |
160 c. |
180 c. |
Sheet width mm |
280 |
400 |
potenza KW |
1,2 |
1,2 |
Power volt |
220/380-3F+N |
220/380-3F+N |
|
