Dryer with 4 frames mod. PR/4


Drier with 4 frames, to eliminate filled pasta humidity, stainless steel version.

Marking CE

Motors: Volt 220/380 three phases
Power: kW 0,03
Output KGs/h: 10 about (pounds 22) (it depends of the kind of product)
Dimensions: mm 840 X 400 X 900 H
Weight: KGs 60 about



Oscillators for fresh pasta and gnocchi

trabatti

MODEL
TB100
TB200
TB300
Width of looms (mm)
400
600
800
Height (mm)
1140
1200
1660
Width (mm)
2500
2800
4010
Depth (mm)
740
900
1250
Weight (kg)
280
410
730
Power installed (kW)
3,5
4,5
5,5
Output/hour
100
200
300

Ideal for pre-drying fresh, stuffed and pasteurized pasta.
Movement, ventilation and heating all contribute in separating the product, preserving its original shape and drying it on the surface, so that it is ready for easy packaging. This treatment eliminates excess moisture and prolongs preservation.

Consisting of:

  • 7 vibrating looms totally made with stainless steel netting
  • entirely made of stainless steel with detachable insulated panels for easy inspection and maintenance
  • independent variable-speed motor
  • forced ventilation with independent fans and motor
  • heating system via resistances
  • three-phase V230-400/50 Hz.

restaurant pasta machine



Dryer for pasta mod. VR/50

The static desiccator is used to prepackage and desiccate long, short and stuffed pasta types and to dry pasteurized pasta prior to packaging.
The structure, made of insulated polyurethane foam panels, provides perfect thermal and acoustic insulation.
The internal and external lining is available as painted sheet or AISI 304 stainless steel sheet. The control system allows to adjust temperature, humidity and production cycles.
Air heating is obtained via resistances or sets of hot water heat exchangers.
All desiccators are equipped with stainless steel trolleys and 600x1200 fir-wood looms with polyester netting.

MODELLO
VR/24
VR/25
VR/50
VR/100
No. of trolleys
1
2
4
Width
1520
1750
1750
1750
Height
2080
2400
2280
2280
Depth
840
750
1700
2900
No. of resistances
3 x 1200 W
3 x 1200 W
3
6
Machine weight (kg)
150
200
320
480

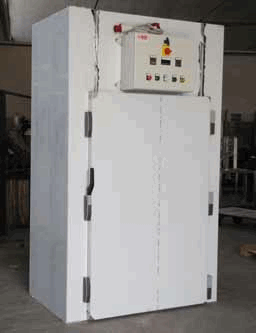

Roll-in static Sterilizers

sterilizers

The high temperature insulated panels of the main structure are entirely made of AISI 304 stainless steel sheet that provides perfect insulation. Heat is provided by a set of resistances.
Temperature and sterilization cycle are controlled through a centralized control system.

MODEL
ST100
ST200
Maximum production cycle time
2 hours
2 hours
Installed power
2.7 kW
5.6 kW
Capacity
100 kg
200 kg
Chassis dimensions
1000x500x70
1000x500x70
Machine dimensions
1210x2350x2150
1210x1800x2150
Weight
310 kg
520 kg
