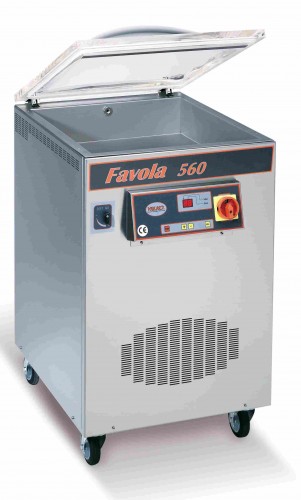

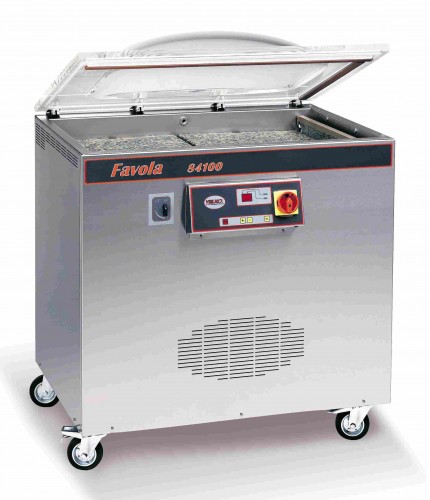

Chamber vacuum packaging machines on wheels 500 series
Ideal for Farm, Butchers, Supermarkets, Restaurants and small Pastifici, these machines were built entirely of stainless steel are fitted with vacuum pumps, which ensure the reliability and long life.
The vacuum packaging envelope with the vacuum chamber may have versions bench or wheel and swivel base.
The wide range is also available in versions "atmosphere (ATM Inert Gas)" and with electronic management. Maintaining the high standard of quality, the models available, they differ in the size of the profits of the vacuum chamber, in the provision and extent of the sealing bars and the extent of the vacuum pumps.
MODEL |
315/10 |
415/20 |
500/40 |
500 TWIN 70 |
Ssealing bar |
315 |
415 |
500 |
2 x 500 |
Camera+coperchio |
1 - 322x367x160 |
1-422x503x220 |
1 |
2-506x558x120+140 |
Machine size |
390x480x350 |
490x620x360 |
1030x550x670 |
1200x730x910 |
Weight – kg |
70 |
110 |
110 |
110 |
Power supply |
230 V |
230 V |
230/400 V |
3F-230/400 V |
Absorption – kW |
0,6 |
0,9 |
1,5 |
2,2 |
Vacuum chamber |
inox |
inox |
inox |
inox |
Inert gas system |
a richiesta |
a richiesta |
a richiesta |
a richiesta |
Vacuum pump |
10 mc/h |
20 mc/h |
40 mc/h |
70 mc/h |
Version |
da banco |
da banco |
da banco |
carrellata |
|

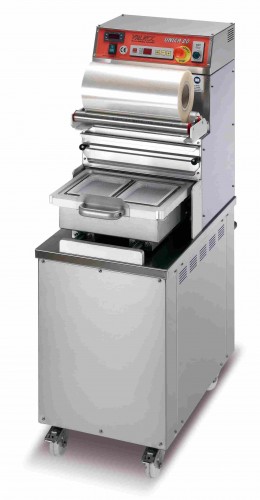

Semiautomatic vacuum Thermosealing Machine with Protective Atmosphere
|
Thermosealers in vacuum atmosphere, trolley on wheels, designed for vacuum packaging of trays of various sizes, dedicated to gastronomy, to supermarkets, to catering, etc..
Built in stainless steel and aluminum
_ Pump 20 m3 / h of best brands
_ Bathtub Stainless steel
_ Campana stamped aluminum
_ Loading film reel changeover and hygienically protected
_ Card with electronic sensor and store 5 programs
_ Bathtub printed in stainless steel for easy cleaning, that allows you to use dies with die-cutting 320 x 265 mm (1 / 2 GN) and 4 x GN 1 / 8.
Muted air compressor (optional)
The air compressor, very quiet (40 dB) may be housed within the thermal (Model 5 liters) or purchased separately (Model 9 liters, see photo). Compressor power at 230V ~ 700W
Diecutting some molds. Stainless steel tank, allows the use of molds
up to 310 x 220 mm with cutting dies and
up to 320 x 265 mm (1 / 2 GN) without cutting.
Machine dimensions (mm) |
450x800x1290 |
Weight |
150 kg. |
Absorption |
2,2 kW |
Max cup dimensions |
340x270x100 |
Piano di lavoro |
Inox |
Dies |
On request |
Power supply |
230/400 V |
<< COMPRESSOR SILENT- DIE CUT MOLDS |
| |
In line automatic vacuum thermosealing machine with protective atmosphere
 |
► FEATURES
- Built in AISI 304 stainless steel and aluminum Peraluman
- Vacuum pump 63 m3 / h
- Bath and aluminum bell Peraluman
- Loading and film reel changeover protected hygienically
- Thermoregulator plate for temperature control Soldering
- Vacuum and gas-controlled digital vacuostato interfaced to a PLC
- Handling equipment with operator panel and PLC
- Monitoring presence bowl with photocell
- Forward and rewind the film reel automatic
- 4 / 6 cycles per minuteo
|
Larghezza |
Profondità |
Altezza |
Fascia bobina |
Max cup dimensions |
Power supply |
Power |
1750 mm |
740 mm |
1450 mm |
|
|
400V 3+T+N |
3,2 kW |
|

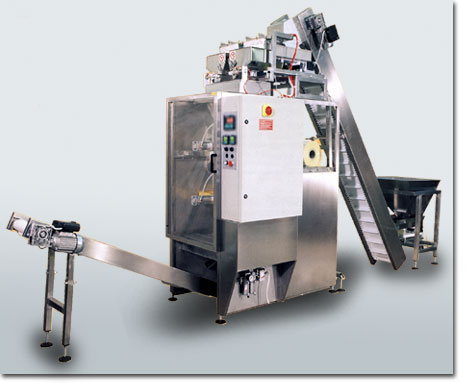

For fresh pasta Automatic vertical Packaging Machine
|
The vertical packaging-weighing machines are completely automated. They are designed and built according to state-of-the-art technology. Made for food packaging, they are equipped with loading hopper, elevator belt and weighing unit.
|
Bag size |
Min 10x10 (approx. 20-25 per min., according to product)
Max 24x30 (approx. 8-10 per min., according to product) |
Bag type |
Pillow |
Overall dimensions |
105x445xH240 cm |
Machine weight |
480 kg |
Power absorption |
1.5 kW single phase |
Pneumatic absorption |
Approx. 10 l/min. |
|
