Mini Pasteurizers pasta machine mod. PS/150
|
Mini pasteurizer pasta machine ideal for all types of fresh pasta workshops - ideal to extend the shelf life of fresh or filled pasta - in only 150 centimetres (inches 5,9) of space it pasteurizes tagliatelle, tortellini, ravioli and other shapes of filled pasta - entirely built in stainless steel - it is provided with 40 cm conveyor belt with adjustable speed -its heater could be either gas-functioning (methane, GPL) with power of kW 1,8 or electric with power of kW 9 -capacity of KGs 30 about (pounds 66,6) - equipped with two frames in stainless steel to keep product -temperature and belt speed are adjustable -equipped with anti-accident devices -
Marking CE
Motors: Volt 220/380 three phases + N
Power: kW 1,8 (with gas-functioning)
Power: kW 9 (electric-functioning)
Burner power: kcal/h 13.000
Output KGs/h: 30 about (pounds 66,6)
Dimensions: mm 1500 X 800 X 1570 H
Weight: KGs 153 about
|

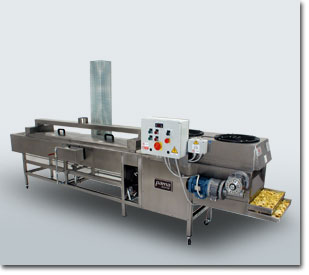

Pasteurizers pasta machine mod. PS/350
|
Pasteurizer pasta machine of 350 centimetres long and wide 50 centimetres - ideal to extend the shelf life of fresh or filled pasta: tortellini, ravioli and other shapes of filled pasta -entirely built in stainless steel - its heater is gas-functioning (methane or GPL) with power of kW 3,4 - capacity of KGs 80 about (pounds 177) - equipped with two frames in stainless steel to keep product - temperature and belt speed are adjustable -equipped with anti-accident devices
Marking CE
Motors: Volt 220/380 three phases + N
Power: kW 3,4 (with gas-functioning)
Burner power: kcal/h 38.000
Output KGs/h: 80 about (pounds 177)
Dimensions: mm 3500 X 1000 X 1700 H
Weight: KGs 300 about
Belt width: mm 500 (inches 19,6)
|

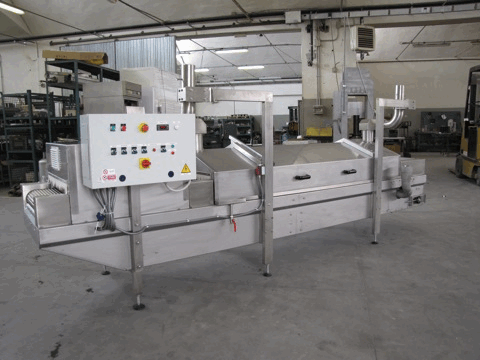

Pasteurizers for fresh pasta
Pasteurising asta machine capacity according to model, by steam injection with automated covering. Marking CE
Technical data:
- Completely AISI 304 stainless steel structure.
- Stainless steel cover with internal insulation and automated opening.
- Stainless steel condensation collector tank.
- Stainless steel netting carpet driven by stainless steel side chains travelling in stainless steel guides.
- Steam injection nozzle groups above and below product.
- Complete steam control system.
- Humidity extraction hoods with adjustable hatches.
- Carpet cleaning brush.
- Final drying area complete with centrifugal fans and finned heating elements.
- Motorised traction reducer with speed regulator.
- Switchboard containing motor commands and electronic temperature control thermoregulator.
| Model |
Output |
| PS 200 V |
200 kg/h |
| PS 250 V |
250 kg/h |
PS 400 V |
400 kg/h |
PS 600 V |
600 kg/h |
