Press Extruder Pasta Machine mod. P/10

restaurant pasta machine


Mod. P/10 little press machine that can produce sheet of pasta or other shapes changing the dies -hourly production of KGs 10 about of sheet of pasta - with one vat mixer-capacity total kgs 8 -
it is ideal for small pasta factories and restaurants -equipped with a cutter for short cuts - water cooling system on the extruder head - product ventilation outlet - equipped with one die for sheet of pasta - mixer shaft can be extract -
equipped with anti-accident devices
Marking CE

Motors: Volt 220 monophase
Power: kW 1
Output KGs/h: 10 about of sheet of pasta (pounds 2,2)
Dimensions: mm 550 x 650 x h. 700
Weight: KGs 80 about
mixer-capacity total kgs 8 (flour/bran and liquid)



Press Extruder Pasta Machine mod. P/30


restaurant pasta machine


Press machine that can produce sheet of pasta or other shapes changing the dies - hourly production of KGs 25 about of sheet of pasta - it is ideal for small pasta factories, restaurants and institutions that want toproduce different kinds of pasta, even in small batches - the attachment of the winding mod. BS/ (bobbin-boy) allows for the production of sheets of pasta which can be subsequently feed the ravioli, cappelletti and agnolotti machines, too (furnished only on request) - equipped with a cutter for short cuts and fan with stainless steel frames - water cooling system on the extruder head - equipped with one die for sheet of pasta mm 280 width and fixed thickness - equipped with anti-accident devices - machine in stainless steel version
marking CE

Motors: Volt 220/380 three phases + N
Power: kW 1,3
Output KGs/h: 25 about of sheet of pasta (pounds 5,6)
Dimensions: mm 640 X 700 X 1280 H
Weight: KGs 200 about die for sheet of pasta mm 280 width (inches 11)
mixer-capacity total kgs 16 (flour/bran and liquid)



Press Extruder Pasta Machine mod. P/60


Press machine that can produce sheet of pasta or other shapes changing the dies - hourly production of KGs 50 about of sheet of pasta - the attachment of the winding mod. BS/ (bobbin-boy) allows for the production of sheets of pasta which can be subsequently feed the ravioli, cappelletti and agnolotti machines, too (furnished only on request) - equipped with a cutter for short cuts and drier with two frames - water cooling system on the extruder head and fan - equipped with one die for sheet of pasta - equipped with anti-accident devices - machine painted or stainless steel version. Marking CE

Motors: Volt 220/380 three phases
Power: kW 2,5
Output KGs/h: 50 about of sheet of pasta
Dimensions: mm 870 X 1100 X 1560 H
Weight: KGs 300

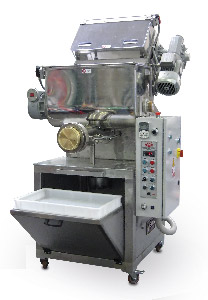

Press - Extruder Pasta Machine mod. P/120

extruderpastamachine
restaurant pasta machine

This is one of the latest generation of extruder machines, hourly production of KGs 120 about of sheet of pasta, it is fitted with two stainless steel bowls: one mixing bowl with automatic electrical overturning and the other feeder bowl, from which the dough is extruded through a tube having a die (draw-plate) for sheet of pasta - the two foregoing assemblies, that are the mixer and feeder, have separate controls and make possible long cycles of silent processing. The speed of pasta output can be regulated by an inverter so in this way the press machine can be in line with machines for the production of cannelloni and tagliatelle. Furthermore this machine can feed with the sheet of pasta other machines for the production of ravioli, cappelletti and agnolotti, too. The water cooling system on the extruder head, is thermostatically controlled. This machine is equipped with: a die for sheet of pasta with fixed thickness, a cutter to cut short shapes of pasta (rigatoni, shells, etc.), a drier with two frames and a ladder. Machine built in stainless steel, equipped with anti-accident devices. Marking CE

Motors: Volt 230/400 three phases + N + earth Power: kW 5
Output KGs/h: 120 about of sheet of pasta (pounds 266)
Dimensions: mm 1100 X 950 X 1750 H Weight: KGs 460 about
Die for sheet of pasta: inches 11 or 15,7)
Mixer-capacity: total kgs 40 (flour/bran and liquid)



Press Extruder Pasta Machine mod. P/250

restaurant pasta machine

Press machine that can produce sheet of pasta or other shapes changing the dies - hourly production of KGs 250 about of sheet of pasta - the attachment of the winding mod. BS/ (bobbin-boy) allows for the production of sheets of pasta which can be subsequently feed the ravioli, cappelletti and agnolotti machines, too (furnished only on request) - equipped with a cutter for short cuts and drier with two frames - water cooling system on the extruder head and fan - equipped with one die for sheet of pasta - equipped with anti-accident devices - machine painted or stainless steel version. Marking CE

Motors: Volt 220/380 three phases Power: kW 10
Output KGs/h: 200/250 about of sheet of pasta
Dimensions: mm 1200+700 X 1800 X 2300 H Weight: KGs 770
